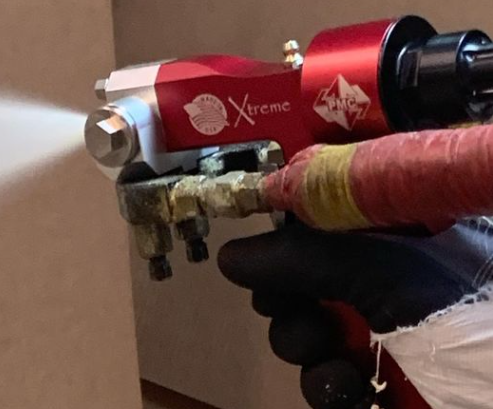

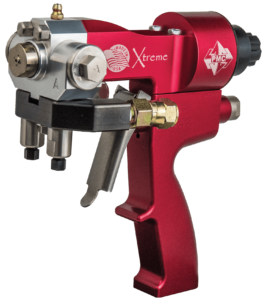

PMC Xtreme Spray Gun

$2,623

PART #202726

Vendor: PMC

Chamber Size: 202726 W/01X Chamber/PCT-Pkg

Features of the PMC Xtreme Spray Foam Gun

This is the latest addition to the PMC equipment line, the Xtreme Spray Gun. Aside from its bold red color, other features include;

  • Improved rebuildable trigger assembly, up to 30% faster
  • Diamond plate mixing chambers
  • Engineered resin side seal use in NASA
  • 9 Chamber sizes cover all output requirements
  • Spray 30-50 sets of materials with the same chamber and seals*

*results may vary depending on material

Q; What are the key differences between the AP-3 and the AP-3 Extreme?

A:  With the extension of your hand PMC took spray to the extreme

  • Extremely light weight. Contoured light weight design allows the operator to spray all day and night.
  • More air purge to the extreme. The Xtreme features a newly designed air cylinder with 3 piece internal check valve for an extreme air purge.
  • Trigger reaction speed to the extreme. All new extremely responsive & rebuildable trigger spool and lining.
  • Extreme finishing: The all new diamond finished chambers provide superior scratch resistance and extended operating times.

TECHNICAL SPECIFICATIONS

Maximum Working Pressure: 3,500 psi (245 Bar)

Air Pressure: 90-125 psi (6.2-8.6 Bar)

Maximum Output (1:1 ratio): 50 lb/min (22.7 L/min)

Minimum Output (1:1 ratio): 3.3 lb/min (1.55 L/min)

Opening Force @ 110 psi (8 Bar): 200 lb (91 kg)

Closing Force @ 110 psi (8 Bar): 200 lb (91 kg)

Weight (Not including Coupling Block): 2.4 lbs (1.1 kg)

Weight (Including Coupling Block): 3.1 lbs (1.4 kg)



Shipping Information

Our on-line store is open 24/7 and we ship Monday through Friday, excluding some holidays. Orders received for products without shipping restrictions on its product page will ship the same business day when received before 3:00 p.m. EST. Orders in high demand will have an estimated production time listed on its product page and will ship according to the date listed.
