PK-25 Series by PMC

PART #203066

Vendor: PMC

REQUEST A QUOTE

Fill out my online form.

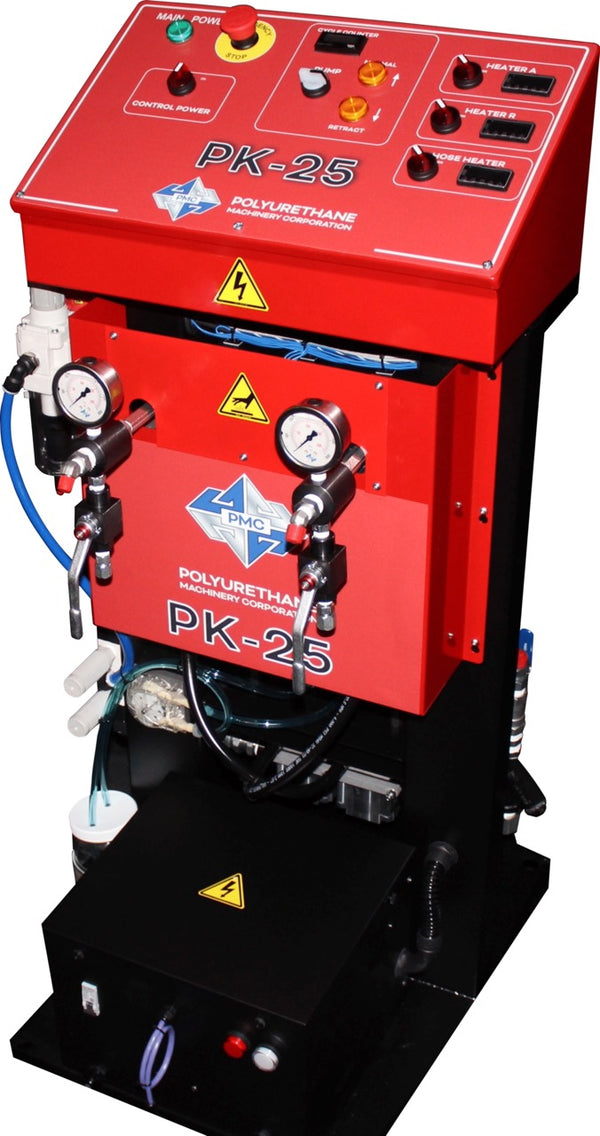

The PK-25 Series Proportioner by Polyurethane Machinery Corporation (PMC) is the newest generation in Pneumatic proportioners. Offering high value and superior performance, at an entry-level price. The PK-25 pneumatic proportioner has a simplistic lightweight small design while being powerful enough to handle foam and coating jobs.

Features:

  • 25 lbs/min
  • High Output 20 CFM Air Motor
  • No Frills Pneumatic Operation
  • Low Amp Draw, High Performance Heater
  • New Open Frame Vertical Pump Layout
  • Common Drive Pumps
  • Inlet Monitoring Option
  • Recirculation Valves Standard
  • Digital Automatic Temperature Control
  • Automatic ISO Lube System
  • CE Certified

Specifications:

  • Output: 25lb/min (14 kg/min)
  • Max Working Pressure: 2,000 (14 MPa, 138 bar)
  • Max Hose Length: 210 ft (64m)
  • Heater Wattage: 7,500 watts (single htr)
  • Hose Heating Power: 70 V, 90 V
  • Max Fluid Temperature: 190 F (87.7C)
  • Weight (w/o Hydraulic Fluid): 160 lbs (27 kg)
  • Electrical @ 7.5KW Heater: Heaters 26 amps
  • Dimensions: 25 in x 25 in x 48 in (64 cm x 64 cm x 123 cm)
  • Weight: 300 lbs (136 kg)
