$4,380

PART #247211

Vendor: Graco

Gun Type: M030 Round Tip 247211

Features of the Fusion MP Spray Gun

Plural-Component Spray Gun

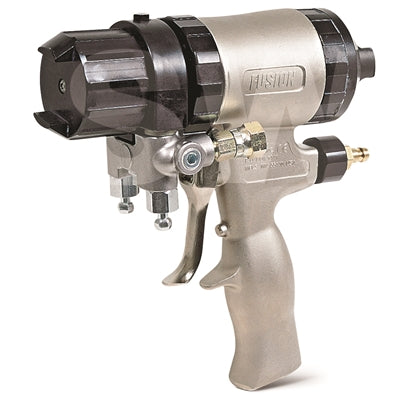

The Graco Fusion Mechanical Purge Gun (MP) is a Plural Component gun, for high output applications. This gun is designed for longevity with a PolyCarballoy mix module. It is easy to clean with a drill bit and has superior mixing capabilities.

Application for use:

  • Roof Coatings
  • Pipe and Tank Coating
  • Secondary Containment Spill Prevention
  • Spray On Bedliners
  • Waterproofing
  • Roof and Wall Insulation
  • Air Sealing Attics and Rim Joists

Material for use:

  • Polyurethane
  • Roof Coatings
  • Polyurea
  • Spray Polyurethane Foam
  • No-Heat Foam


    Technical Specs

    Maximum Fluid Working Pressure: 3500 psi
    Maximum Working Air Inlet Pressure: 130 psi
    Maximum Fluid Temperature: 200F
    Weight: 2.6 lb
    Air Inlet Size: 1/4 npt Quick Disconnect Nipple
    A Component (ISO) Inlet Size: -5 JIC; 1/2-20 UNF
    B Component (Resin) Inlet Size: -6 JIC; 9/16-18 UNF
    Wetted Parts: Aluminum, stainless steel, carbon steel, carbide, chemically resistant O-rings
