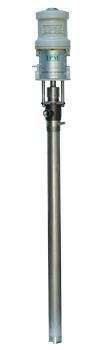

IPM Drum Length Stainless Steel 5:1 Transfer Pump
The IPM 5:1 is a heavy duty operated fluid Transfer Pump, IP Series, is designed for a 55 gallon drum, with the ability to transfer thicker viscosity and a wide span of materials. It is air operated with the positive displacement being completely uniform. Made with stainless steel.
The IPM 5:1 has a two ball piston design that provides uniform positive displacement. Its stainless steel design makes it an extremely durable and specially designed piston seals do not come into contact with material pumped which creates a longer span of life.
Product Specifications
- Fluid Ratio: 5:1
- Max Output Flow Cont: 2.5 GPM
- Max Output Pressure: 600 PSI
- Max Air Input Pressure: 120 PSI
- Rod Cylinder and Wetted Parts: Stainless Steel
- Weight : 32 lbs
Typical Applications
- Fluid transfer and supply for application equipment
- Paint circulating
- Cleaning chemical supply
- Wood furniture and fixture finishing
- Fabricated metal finishing
- Aircraft finishing
- Farm and construction Equipment finishing
Typical Fluids Handled
- Solvent based paints
- Water based paints
- Texture coatings
- Cleaning fluids
- Adhesives and sealants
- Urethanes
- Epoxies
- Acrylics
- Silicones
- Polysulfides
- PVC
- Polyesters
