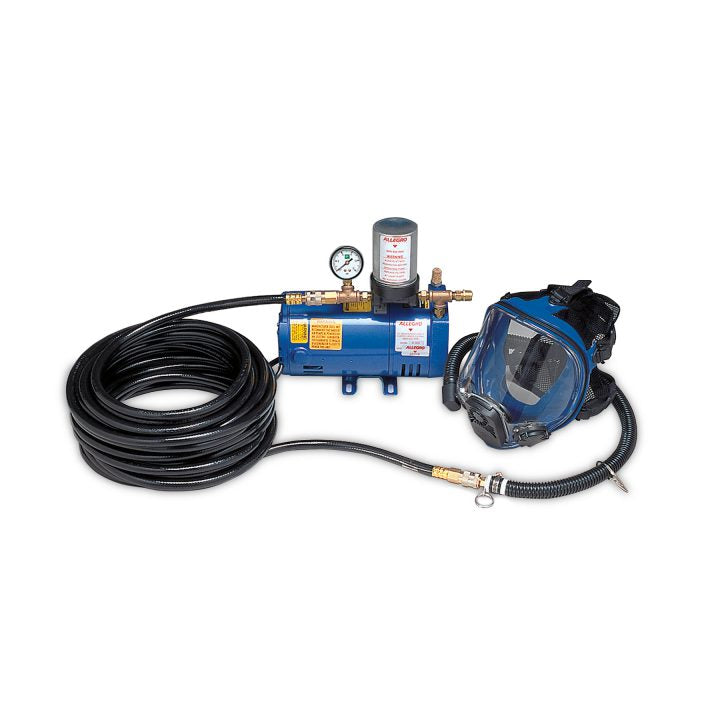

Allegro Complete Two-man System

2-Worker Full Mask System with two 100' Hoses

The Full Mask Systems provides a portable air source for one, two or three respirator users. They include one, two or three full mask supplied air respirators, a 1/4 hp ambient air pump, 3/4 hp pump or 1 1/2 hp pump, and 50 or 100 foot breathing air hose.

FULL MASK RESPIRATOR:

• Durable silicone rubber
• Hypoallergenic and chemical/Ozone resistant
• Replaceable polycarbonate lens
• Removable hairnet
• Down tube comes with a 90-degree elbow that allows it to be directed over the shoulder
• OBAC quick-connect plug with wide diameter and minimal air restriction

PUMP:

• Type: Oil-less, rotary vane
• Vanes: Carbon construction
• Inlet Filter:
• 40.0 Micron bronze/steel (¼ hp)
• 50 Micron felt material with metal grid inlet filter housing
• Exhaust Filter: 0.3 Micron HEPA
• Pressure Gauge: 1½” (3.8 cm) face, steel housing (0-15 psi) (0-1.03 bar)
• Working Pressure: 2-12 psi (0.14-0.83 bar) (15 psi max) (1.03 bar max)
• Performance:
• 0-5 CFM (0-8.5 m3 /hr) (¼ hp)
• 0-10 CFM (0-16.99 m3 /hr) (¾ hp)
• 0-20 CFM (0-33.98 m3 /hr) (1½ hp)

MOTOR:

• Type: ¼ hp, ¾ hp, or 1½ hp UL Listed
• Volts: 115V/230V AC, Single Phase
• Power Required: 5.5A (1/4 hp), 8.3A (3/4 hp), 16A (1½ hp)

HOSE:

• Polyvinyl chloride with reinforced braided polyester yarn
• -20° F to 150° F (-28.8° C to 65.5° C)
• Maximum pressure 185 psi @ 70° F (12.76 bar @ 21.1° C)
