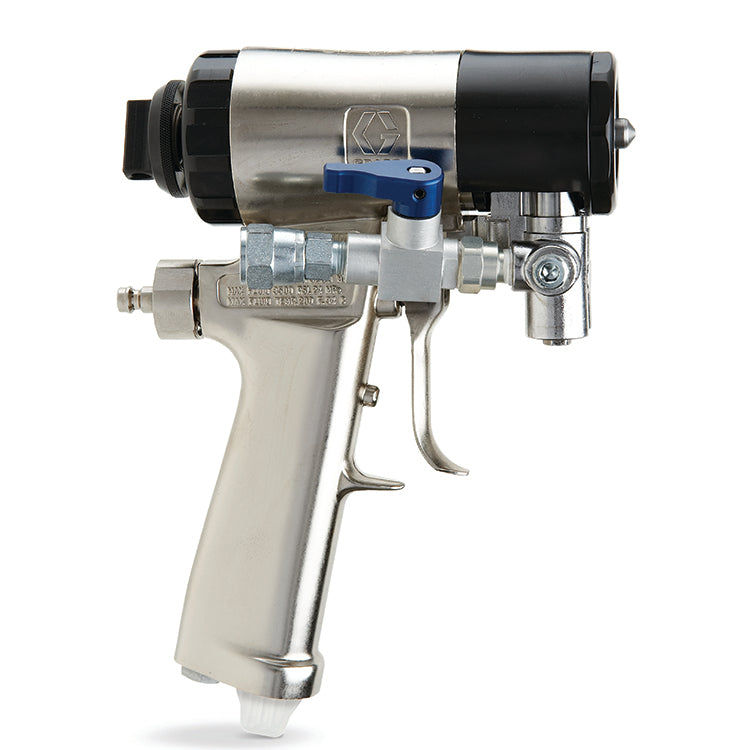

Graco Fusion CS Gun

Plural-Component Spray Gun

The Graco Fusion Clear Shot Spray Gun (CS) is a Plural Component, Impingement Mix Air Purge Spray Gun with ClearShot Liquid Technology. With life-long mixing chamber and sustainable side seals, the Fusion CS gun is created to virtually eliminate drilling of the mix chamber - increasing your spraying uptime and reducing downtime spent on maintenance with the clear shot.

Application for use:

• Bridge Protective Coatings
• Roof & Wall Insulation
• Air Sealing Attics & Rim Joists

Materials:

• Polyurethane
• Polyurea
• Spray Polyurethane Foam

Technical Specs

• Maximum Fluid Working Pressure: 3500 psi
• Maximum Working Air Inlet Pressure: 130 psi
• Maximum Fluid Temperature: 200F
• Weight: 2.6 lb
• Air Inlet Size: 1/4 npt Quick Disconnect Nipple
• A Component (ISO) Inlet Size: -5 JIC; 1/2-20 UNF
• B Component (Resin) Inlet Size: -6 JIC; 9/16-18 UNF
• Wetted Parts: Aluminum, stainless steel, carbon steel, carbide, chemically resistant O-rings
