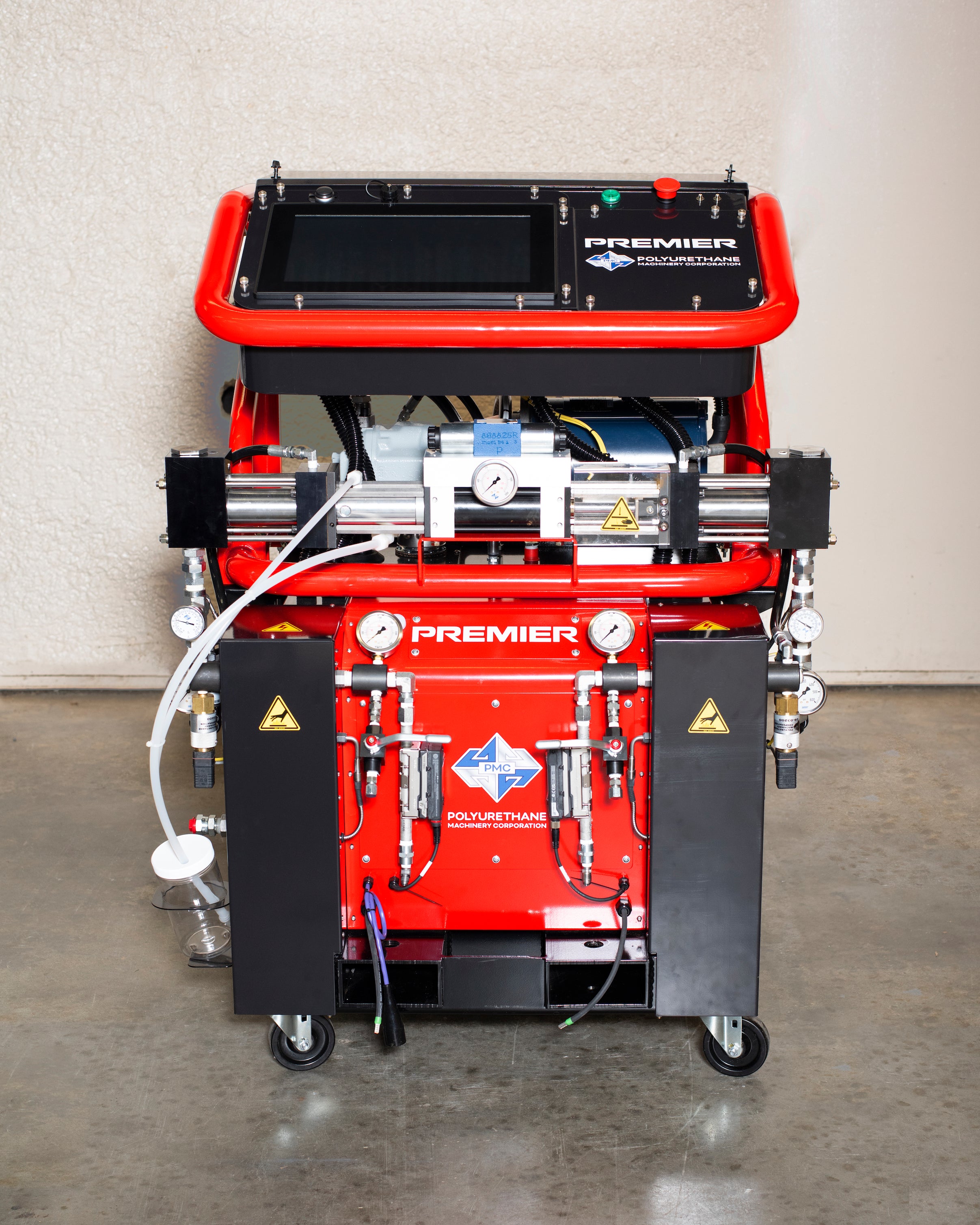

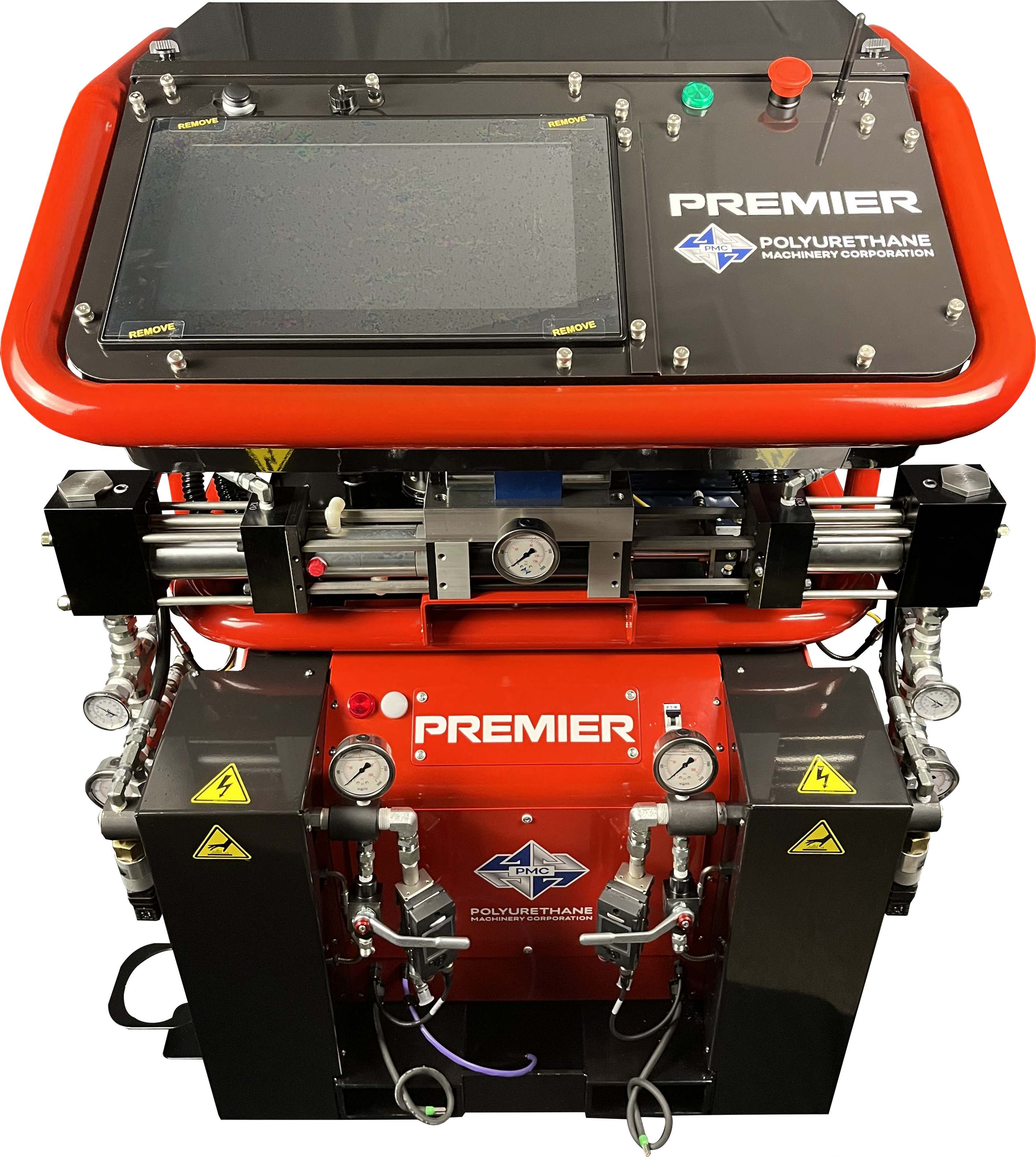

PMC Premier Proportioner

Intuitive design and remote capabilities - ideal for high output applications residential and commercial

The new PMC Premier Proportioner is a plural component machine designed to easily and quickly view the dashboard from anywhere. This Robust classic pumpline featuring touch screen and remote capabilities – polished data recording and reports are easily accessible in an intuitive user interface.

• 5 horsepower
• 220 volt
• 3PH
• Recirculation Valve
• 120 T
• 18 KW

Features of this machine:

• User management and traceability features
• Dashboard view
• Chemical management view
• Reporting view
• Historical view
• Tech Support view
• System settings
• Asset dashboard view
• Remote access

Specs:

• Output: 40 lbs/min (18.14 kg/min)
• Max Working Pressure : 2,000 psi (138 bar)
• Max Hose Length : 410 ft (121.9 m)
• Heater Wattage : 18,000 watts Total (Dual htr)
• Hose Heating Power : 120 Volts
• Max Fluid Temperature : 190 F (87.7 C)
• Main Voltage : 208-240VAC Single Phase 134A–18,000W heaters
• Main Voltage : 208-240VAC Three Phase 88A-18,000W heaters
• Dimensions : 30in x 40in x 55in (76cm x 102cm x 140cm)
• Weight : 603 lbs. (274 kg) (Full Hydraulic Tank)
