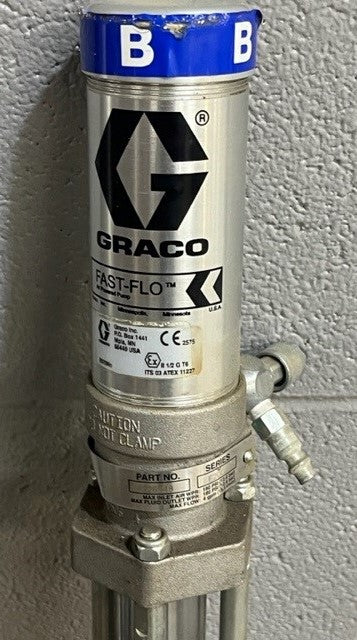

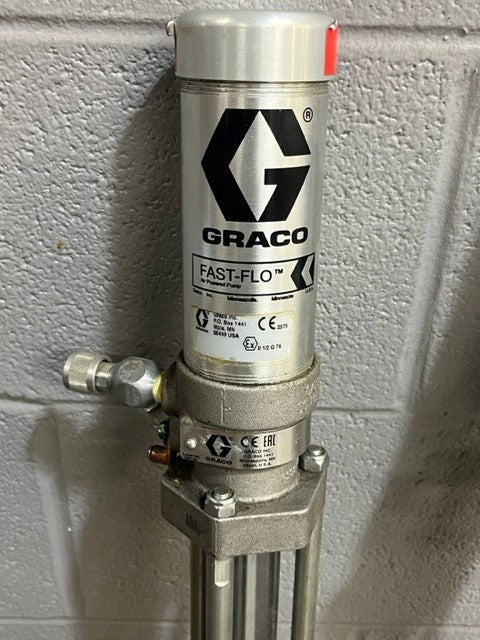

Fast-Flo® 1:1 Transfer Universal Length Pump for Motor Oil
Fast-Flo 1:1 pumps are designed to operate at air input pressures up to 180 psi (12 bar, 1.2 MPa) and deliver a smooth, reliable flow.
Ideal for lower viscosity fluids. Stubby length models are used for wall mount siphon feed applications.
- Air-powered for high reliability and low cost
- Delivery up to 5 gpm (19 lpm)
SPECS:
UPC Product: 00633955412361
Family Code: FAMFAS
Unit of Measure: EA
Height: 4.8 IN | 12.192 CM
Length: 4.8 IN | 12.192 CM
Width: 26.4 IN | 67.056 CM
Volume: .352 FT3 | .01 M3
Technical Specifications
|
TYPE
|
Pneumatic Piston Pump
|
|
AIR INLET SIZE (IN)
|
1/4
|
|
AIR INLET SIZE (MM)
|
6.35
|
|
AIR INLET THREAD GENDER
|
Female
|
|
AIR INLET THREAD TYPE
|
NPT
|
|
AIR MOTOR EFFECTIVE DIAMETER (IN)
|
1.4
|
|
APPLICATION
|
Industrial
|
|
COMPATIBLE MATERIAL
|
Water, Antifreeze, Windshield Washer Fluid, Used Oil, Used Antifreeze
|
|
CYCLES PER GALLON
|
25
|
|
FLUID INLET SIZE (IN)
|
1-1/2
|
|
FLUID INLET SIZE (MM)
|
38.1
|
|
FLUID INLET THREAD GENDER
|
Female
|
|
FLUID INLET THREAD TYPE
|
NPT
|
|
FLUID OUTLET SIZE (IN)
|
3/4
|
|
FLUID OUTLET SIZE (MM)
|
19.05
|
|
FLUID OUTLET THREAD GENDER
|
Female
|
|
FLUID OUTLET THREAD TYPE
|
NPT
|
|
FOR USE WITH
|
Oil
|
MAXIMUM AIR INLET PRESSURE (BAR)12.41
MAXIMUM AIR INLET PRESSURE (KPA)1241
MAXIMUM AIR INLET PRESSURE (PSI)180
MAXIMUM CONTINUOUS CYCLE RATE (CPM)100
MAXIMUM FLOW RATE (GPM)5
MAXIMUM FLOW RATE (L/MIN)18.93
MAXIMUM INTERMITTENT CYCLE RATE (CPM)100
MAXIMUM WORKING PRESSURE (BAR)12.4
MAXIMUM WORKING PRESSURE (KPA)1250
MAXIMUM WORKING PRESSURE (PSI)180
MODELFast-Flo
POWER TYPE Pneumatic
PUMP RATIO1:1
SEAL MATERIAL Rubber
SOUND POWER LEVEL (DB(A))82
SOUND PRESSURE LEVEL (DB(A))72
WEIGHT (LB)11
WETTED MATERIAL303 Stainless Steel, 304 Stainless Steel, 316 Stainless Steel, Buna-N, Cadmium-Plated Ductile Iron, Chrome-Plated Steel, Zinc-Plated Steel, PTFE, Fluoroelastomer, Polyethylene
WEIGHT (KG)0.4994
MAXIMUM WORKING PRESSURE (MPA)1.
*All used equipment sales are final.
